Introduction to React

Sparking the REACTion of User Interface and Experience

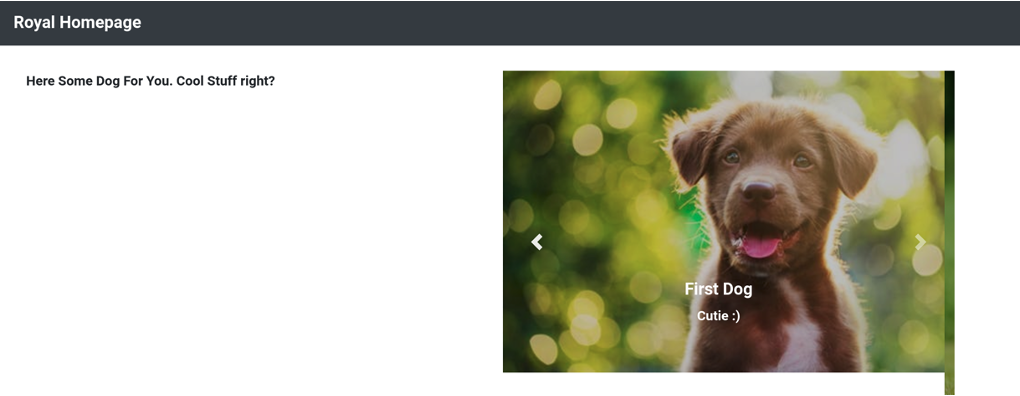

dog

Decomposing the HTML User Interface

Complete code
 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
<!DOCTYPE html>
<html lang="en">

<head>
    <meta charset="UTF-8" />
    <meta name="viewport" content="width=device-width, initial-scale=1.0" />
    <link rel="stylesheet" href="https://stackpath.bootstrapcdn.com/bootstrap/4.3.1/css/bootstrap.min.css"
        integrity="sha384-ggOyR0iXCbMQv3Xipma34MD+dH/1fQ784/j6cY/iJTQUOhcWr7x9JvoRxT2MZw1T" crossorigin="anonymous" />
    <link rel="stylesheet" href="style.css" />
    <title>My Home Page - Frinze Lapuz</title>
</head>

<body>
    <nav class="navbar sticky-top navbar-dark bg-dark">
        <div class="container nav">
            <a class="navbar-brand" href="#">Royal Homepage</a>
        </div>
    </nav>
    <div class="container">
        <div class="row">
            <div class="col">Here Some Dog For You. Cool Stuff right?</div>
            <div class="col">
                <!-- <img class="img-fluid img-thumbnail" src="dog.jpg" alt="dog" /> -->
                <div class="carouselWrapper">
                    <div id="carouselDoggo" class="carousel slide" data-ride="carousel">
                        <ol class="carousel-indicators">
                            <li data-target="#carouselDoggo" data-slide-to="0" class="active"></li>
                            <li data-target="#carouselDoggo" data-slide-to="1"></li>
                            <li data-target="#carouselDoggo" data-slide-to="2"></li>
                        </ol>
                        <div class="carousel-inner">
                            <div class="carousel-item active">
                                <img src="dog.jpg" class="d-block w-100" alt="..." />
                                <div class="carousel-caption d-none d-md-block">
                                    <h5>First Dog</h5>
                                    <p>Cutie :)</p>
                                </div>
                            </div>
                            <div class="carousel-item">
                                <img src="dog2.jpg" class="d-block w-100" alt="..." />
                                <div class="carousel-caption d-none d-md-block">
                                    <h5>Second Dog</h5>
                                    <p>Good Doggo!</p>
                                </div>
                            </div>
                            <div class="carousel-item">
                                <img src="dog3.jpg" class="d-block w-100" alt="..." />
                                <div class="carousel-caption d-none d-md-block">
                                    <h5>Third Dog</h5>
                                    <p>Walkie Barkie Cutie!</p>
                                </div>
                            </div>
                        </div>
                        <a class="carousel-control-prev" href="#carouselDoggo" data-slide="prev">
                            <span class="carousel-control-prev-icon"></span>
                            <span class="sr-only">Previous</span>
                        </a>
                        <a class="carousel-control-next" href="#carouselDoggo" data-slide="next">
                            <span class="carousel-control-next-icon"></span>
                            <span class="sr-only">Next</span>
                        </a>
                    </div>
                </div>
            </div>
        </div>
    </div>
    <script src="https://code.jquery.com/jquery-3.3.1.slim.min.js"
        integrity="sha384-q8i/X+965DzO0rT7abK41JStQIAqVgRVzpbzo5smXKp4YfRvH+8abtTE1Pi6jizo"
        crossorigin="anonymous"></script>
    <script src="https://cdnjs.cloudflare.com/ajax/libs/popper.js/1.14.7/umd/popper.min.js"
        integrity="sha384-UO2eT0CpHqdSJQ6hJty5KVphtPhzWj9WO1clHTMGa3JDZwrnQq4sF86dIHNDz0W1"
        crossorigin="anonymous"></script>
    <script src="https://stackpath.bootstrapcdn.com/bootstrap/4.3.1/js/bootstrap.min.js"
        integrity="sha384-JjSmVgyd0p3pXB1rRibZUAYoIIy6OrQ6VrjIEaFf/nJGzIxFDsf4x0xIM+B07jRM"
        crossorigin="anonymous"></script>
</body>

</html>
Relevant Code for Discussion
 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
<nav class="navbar sticky-top navbar-dark bg-dark"> <!--(1)-->
    <div class="container nav">
        <a class="navbar-brand" href="#">Royal Homepage</a>
    </div>
</nav>
<div class="container">
    <div class="row">
        <div class="col">Here Some Dog For You. Cool Stuff right?</div> <!--(2)-->
        <div class="col">
            <div class="carouselWrapper"> <!--(3)-->
                <div id="carouselDoggo" class="carousel slide" data-ride="carousel">
                    <ol class="carousel-indicators">
                        <li data-target="#carouselDoggo" data-slide-to="0" class="active"></li>
                        <li data-target="#carouselDoggo" data-slide-to="1"></li>
                        <li data-target="#carouselDoggo" data-slide-to="2"></li>
                    </ol>
                    <div class="carousel-inner">
                        <div class="carousel-item active">
                            <img src="dog.jpg" class="d-block w-100" alt="..." />
                            <div class="carousel-caption d-none d-md-block">
                                <h5>First Dog</h5>
                                <p>Cutie :)</p>
                            </div>
                        </div>
                        <div class="carousel-item">
                            <img src="dog2.jpg" class="d-block w-100" alt="..." />
                            <div class="carousel-caption d-none d-md-block">
                                <h5>Second Dog</h5>
                                <p>Good Doggo!</p>
                            </div>
                        </div>
                        <div class="carousel-item">
                            <img src="dog3.jpg" class="d-block w-100" alt="..." />
                            <div class="carousel-caption d-none d-md-block">
                                <h5>Third Dog</h5>
                                <p>Walkie Barkie Cutie!</p>
                            </div>
                        </div>
                    </div>
                    <a class="carousel-control-prev" href="#carouselDoggo" data-slide="prev">
                        <span class="carousel-control-prev-icon"></span>
                        <span class="sr-only">Previous</span>
                    </a>
                    <a class="carousel-control-next" href="#carouselDoggo" data-slide="next">
                        <span class="carousel-control-next-icon"></span>
                        <span class="sr-only">Next</span>
                    </a>
                </div>
            </div>
        </div>
    </div>
</div>
  1. Navigation Bar
  2. Some Text
  3. Carousel

HTML Stored in Variables

1
2
3
4
5
6
7
const Nav =
    `<nav class="navbar sticky-top navbar-dark bg-dark">
        <div class="container nav">
            <a class="navbar-brand" href="#">Royal Homepage</a>
        </div>
    </nav>
    `

HTML Stored in Functions

1
2
3
4
5
6
7
8
const Nav = (title) =>
    `
    <nav class="navbar sticky-top navbar-dark bg-dark">
        <div class="container nav">
            <a class="navbar-brand" href="#">${title}</a>
        </div>
    </nav>
    `
Carousel Decomposition

The highlighted ones are the key-distinct data driven elements.

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
<div class="carouselWrapper">
    <div id="carouselDoggo" class="carousel slide" data-ride="carousel">
        <ol class="carousel-indicators">  <!--(1)-->
            <li data-target="#carouselDoggo" data-slide-to="0" class="active"></li>
            <li data-target="#carouselDoggo" data-slide-to="1"></li>
            <li data-target="#carouselDoggo" data-slide-to="2"></li>
        </ol>
        <div class="carousel-inner">
            <div class="carousel-item active"> <!--(2)-->
                <img src="dog.jpg" class="d-block w-100" alt="..." />
                <div class="carousel-caption d-none d-md-block">
                    <h5>First Dog</h5>
                    <p>Cutie :)</p>
                </div>
            </div>
            <div class="carousel-item">
                <img src="dog2.jpg" class="d-block w-100" alt="..." />
                <div class="carousel-caption d-none d-md-block">
                    <h5>Second Dog</h5>
                    <p>Good Doggo!</p>
                </div>
            </div>
            <div class="carousel-item">
                <img src="dog3.jpg" class="d-block w-100" alt="..." />
                <div class="carousel-caption d-none d-md-block">
                    <h5>Third Dog</h5>
                    <p>Walkie Barkie Cutie!</p>
                </div>
            </div>
        </div>
        <a class="carousel-control-prev" href="#carouselDoggo" data-slide="prev">
            <span class="carousel-control-prev-icon"></span>
            <span class="sr-only">Previous</span>
        </a>
        <a class="carousel-control-next" href="#carouselDoggo" data-slide="next">
            <span class="carousel-control-next-icon"></span>
            <span class="sr-only">Next</span>
        </a>
    </div>
</div>

  1. Carousel Indicators
  2. Carousel Items

Now, what if we have a variable called dogsData an array of objects (may come from fetch).

1
2
3
4
5
6
7
8
9
dogsData = [
    ...
    {
        imgSrc: "dog.jpg",
        title: "First Dog",
        caption: "Cutie :)"
    }
    ...
]


 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
const Carousel = (dogsData) =>
    `
    <div class="carouselWrapper"> <!--(1)-->
        <div id="carouselDoggo" class="carousel slide" data-ride="carousel">
            <ol class="carousel-indicators">
                ${dogsData.map((dog, index) => `<li data-target="#carouselDoggo" data-slide-to="${index}" class="${index === 0 ? 'active' : ''}"></li>`).join('')}
            </ol>
            <div class="carousel-inner">
                ${dogsData.map((dog, index) => `
                    <div class="carousel-item ${index === 0 ? 'active' : ''}">
                        <img src="${dog.imgSrc}" class="d-block w-100" alt="..." />
                        <div class="carousel-caption d-none d-md-block">
                            <h5>${dog.title}</h5>
                            <p>${dog.caption}</p>
                        </div>
                    </div>
                `).join('')}
            </div>
            <a class="carousel-control-prev" href="#carouselDoggo" data-slide="prev">
                <span class="carousel-control-prev-icon"></span>
                <span class="sr-only">Previous</span>
            </a>
            <a class="carousel-control-next" href="#carouselDoggo" data-slide="next">
                <span class="carousel-control-next-icon"></span>
                <span class="sr-only">Next</span>
            </a>
        </div>
    </div>
    `

Assemble the Components

1
2
3
4
5
6
7
{Nav("Royal Homepage")}
<div class="container">
    <div class="row">
        <div class="col-md-12">
            {Carousel(dogsData)}
        </div>
    </div>
or with JSX

1
2
3
4
5
6
7
<Nav title="Royal Homepage"></Nav>
<div class="container">
    <div class="row">
        <div class="col-md-12">
            <Carousel dogsData={dogsData}></Carousel>
        </div>
    </div>

Intro to React

Complete Modularised Code
 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
const Nav = () => <nav class="navbar sticky-top navbar-dark bg-dark">
    <div class="container nav">
        <a class="navbar-brand" href="#">Royal Homepage</a>
    </div>
</nav>

const Carousel = (dogsData) =>
    <div class="carouselWrapper">
        <div id="carouselDoggo" class="carousel slide" data-ride="carousel">
            <ol class="carousel-indicators">
                ${dogsData.map((dog, index) => `<li data-target="#carouselDoggo" data-slide-to="${index}" class="${index === 0 ? 'active' : ''}"></li>`).join('')}
            </ol>
            <div class="carousel-inner">
                ${dogsData.map((dog, index) => `
                    <div class="carousel-item ${index === 0 ? 'active' : ''}">
                        <img src="${dog.imgSrc}" class="d-block w-100" alt="..." />
                        <div class="carousel-caption d-none d-md-block">
                            <h5>${dog.title}</h5>
                            <p>${dog.caption}</p>
                        </div>
                    </div>
                `).join('')}
            </div>
            <a class="carousel-control-prev" href="#carouselDoggo" data-slide="prev">
                <span class="carousel-control-prev-icon"></span>
                <span class="sr-only">Previous</span>
            </a>
            <a class="carousel-control-next" href="#carouselDoggo" data-slide="next">
                <span class="carousel-control-next-icon"></span>
                <span class="sr-only">Next</span>
            </a>
        </div>
    </div>

const Homepage = () =>{
    const dogsData = fetch(...) // Get data from API
    return (
        <>
            <Nav title="Royal Homepage"></Nav>
            <div class="container">
                <div class="row">
                    <div class="col-md-12">
                        <Carousel dogsData={dogsData}></Carousel>
                    </div>
            </div>
        </>
    )
}

React Component Hierarchy and State Flow

In a React application, components are organized into a hierarchy. Components can be parents, children, or siblings of each other, and data typically flows from parent to child through props.

1
2
3
4
5
Homepage
├── Nav
└── Carousel
    ├── CarouselIndicators
    └── CarouselItems

Props: Passing Data Down

Props are used to pass data from a parent component to its children.

1
2
3
4
5
6
7
const Parent = () => {
    return <Child message="Hello from parent!" />;
}

const Child = ({ message }) => {
    return <p>{message}</p>;
}

State: Local and Lifted Up

Each component can maintain its own state using the useState hook:

1
2
3
4
const Counter = () => {
    const [count, setCount] = useState(0);
    return <button onClick={() => setCount(count + 1)}>Clicked {count} times</button>;
}

Sometimes, state must be shared between components. In that case, you lift the state up to their common ancestor and pass values and updater functions down via props.

1
2
3
4
5
6
7
8
9
const Parent = () => {
    const [dogIndex, setDogIndex] = useState(0);
    return (
        <>
            <Selector onSelect={setDogIndex} />
            <Carousel selectedIndex={dogIndex} />
        </>
    );
}

Unidirectional Data Flow

React enforces a top-down data flow. Children cannot directly update a parent’s state, but parents can pass down callbacks to allow children to trigger updates.

Getting Started with React

Getting Started with the app

To get started with react, use the following commands

npx create-react-app my-app where my-app is the name of the folder for where the react app is going to be.

cd my-app

Notice that it created a couple of folders. In a couple of sentences:

src/index.js - injects the user interface in the public/index.html (the front part of the build)

public - folder containing the static assets as well as the index.html

package.json - dependencies and scripts for the app

type yarn start to run the development version of React (it will run react-scripts start within the node_modules … so running react-scripts start will not exactly be the same). This will serve up React on a port.

React Frameworks

React is only a library, and so only controls behaviour on the webpage and not between webpages, etc. Often React will be used as part of a React-based framework such as: - Next.js - Remix

These frameworks provide functionality such as routing, server-side rendering (SSR), and other "architectural" support.
